Thermal CTP Plate Machine with Max Plate Size 1163x940mm 3 Years Warranty and 830nm Laser Wavelength

1set
MOQ
Negocjowalne
Cena £
Thermal CTP Plate Machine with Max Plate Size 1163x940mm 3 Years Warranty and 830nm Laser Wavelength
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Kanały laserowe: 256CH
Prędkość wyjściowa: 48 ppm
Maksymalny rozmiar płyty: 1163X940 ((mm)
Nakładanie i rozładunek płyt: półautomatyczny, ręczny
Waga netto: 900 KG
Rozmiar maszyny: 2,320×1,080×960mm( L×W×H)
Gwarancja: 3 lata lub dożywotnia
Metoda eksponowania: Bęben zewnętrzny
Podkreślić:

Max Plate Size CTP Plate Machine

,

3 Years Warranty Thermal CTP Machine

,

830nm Laser Computer To Plate Machine
Podstawowe informacje
Miejsce pochodzenia: CHINY
Nazwa handlowa: ECOOGRAPHIX
Orzecznictwo: CE
Numer modelu: T800X
Dokument: Thermal CTP machine T800 se...ix.pdf
Zapłata
Szczegóły pakowania: Standardowe opakowanie eksportowe w przypadku sklejki
Czas dostawy: Około 20 dni
Zasady płatności: L/C, T/T.
Możliwość Supply: 500 ZESTAW
opis produktu
CTP OEM Factory 48PPH Newspaper Offset Plate Machine
EcooGraphix is a professional and leading manufacturer/supplier of CTP Equipment and materials in China. With about 20 years' exporting experience, we have many partners and customers worldwide, including OEM partnerships with Presstek/Mark Andy in USA, Beneco in Canada, Focus Print Group in Australia, and others.
Product Offerings
  • Prepress CTP plate making machines: Thermal CTP/UV CTP with speeds from 16PPH to 55PPH
  • Flexo CTP Polymer plate making machines for labels and carton packaging
Specifications
Model: EcooSetter T-800QE Offline Easy to Use Thermal CTP
Laser wavelength: 830nm
Plate: Positive Thermal CTP Plate
Exposing Method: External Drum
Imaging System: 256-channel
Throughput: 48 plates per hour (1030mmx800mm at 2400dpi)
Plate Size: Max. 1163x940mm, Min. 300x400mm
Plate Thickness: 0.15mm to 0.3mm
Resolutions: 2,400dpi
Repeatability: ±5μm
Interface: USB2.0
Weight: 900KG
Dimensions: 2530×1050×950mm (W×D×H)
Power Supply: Single-phase: 220AC+6%,-10%; Power Consumption: 4KW
Environment: Recommended: 21-25ºC, Max.18-26ºC, Humidity:40-70%
Application
The EcooGraphix Thermal CTP Plate Making Machine is essential for quick short-run offset printing, enabling direct output from computer to printing plate while saving film and labor costs. It delivers excellent image quality, reliable stability, and space efficiency.
Key Features
  • 256-channel laser light valve technology
  • High publishing speed of 38-48 sheets per hour
  • Square light spot imaging increases color saturation by 21%
  • Linear motors provide high-precision positioning and long service life
Thermal CTP Plate Machine with Max Plate Size 1163x940mm 3 Years Warranty and 830nm Laser Wavelength 0
Similar Models Comparison
Model T-800F T-800S T-800E
Imaging Diodes 64-channel 48-channel 32-channel
Throughput 28 plates/hour 22 plates/hour 16 plates/hour
Plate Sizes Max. 1,163×940mm, Min. 300×400mm
Media Type Positive 830nm Thermal CTP Plate
Machine Technology
  • Superior dot quality: 1%-99% dot reproduction, up to 300lpi screening
  • World-class components from Japan, USA, and Germany
  • Long lifetime: laser diodes last over 10,000 imaging hours (~200,000 plates)
  • 3-year warranty with free parts replacement
  • Proven worldwide market leader with over 6,000 units installed

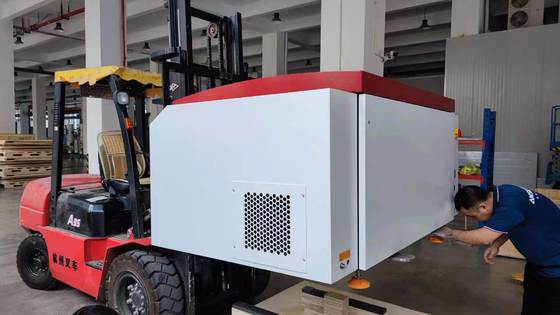

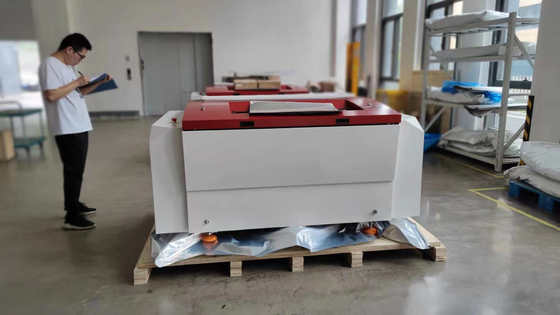

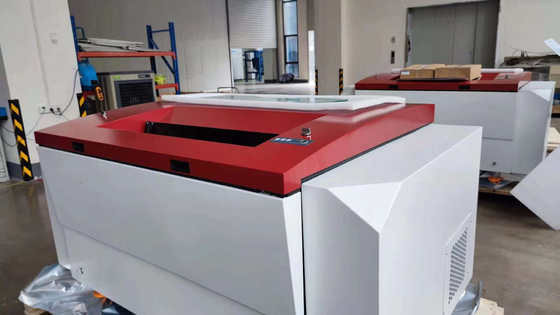

Our Factory
Thermal CTP Plate Machine with Max Plate Size 1163x940mm 3 Years Warranty and 830nm Laser Wavelength 1 Thermal CTP Plate Machine with Max Plate Size 1163x940mm 3 Years Warranty and 830nm Laser Wavelength 2 Thermal CTP Plate Machine with Max Plate Size 1163x940mm 3 Years Warranty and 830nm Laser Wavelength 3 Thermal CTP Plate Machine with Max Plate Size 1163x940mm 3 Years Warranty and 830nm Laser Wavelength 4 Thermal CTP Plate Machine with Max Plate Size 1163x940mm 3 Years Warranty and 830nm Laser Wavelength 5 Thermal CTP Plate Machine with Max Plate Size 1163x940mm 3 Years Warranty and 830nm Laser Wavelength 6
Frequently Asked Questions
Q: What are your main products?
A: We supply Prepress Thermal CTPs, CTCPs, VLF CTPs, Flexo CTPs, Processors, Offset Plates, Inks, Printing Blankets, and Postpress Packing Equipment.
Q: Is there any certification for your CTP machine?
A: Yes, all our CTP machines are certified by SGS and CE.
Q: Can you supply Workflow and RIP?
A: Yes, we provide Workflow Brain New and RIP Compose V13.
Q: What is the warranty period?
A: 3-year warranty for CTP machine. Lifetime guarantee on parts when using EcooGraphix CTP plates.
